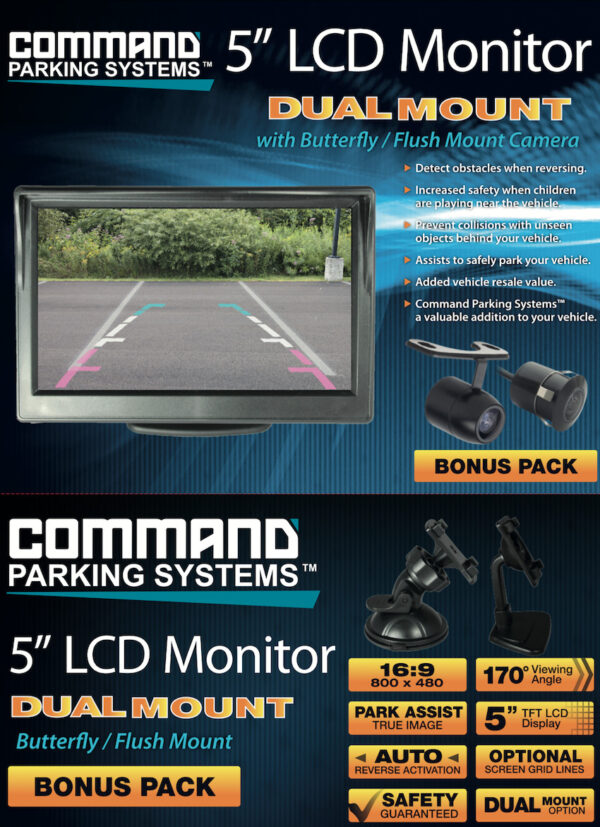

5″ DUAL MOUNT MONITOR & CAMERA PACK

$199.00

In stock

PEDESTAL Bracket or SUCTION CUP Bracket

The universal Dual Mount Monitor is perfect for applications where cabin space is tight or when mounting flexibility is critical for the installation. The 5” display will mount on the vehicles dash with the provided pedestal bracket or onto the vehicles windscreen with the use of the provided suction cup bracket for quick and easy install. This screen now comes as a complete kit with the popular CMDC110 Dual Mount Butterfly/Flush Mount Camera making is suitable for professional and DIY installation to any vehicle. The Command CMDC110 camera features a 4pin Mini-Din connector to assist with the simple installation process as well as removable parking lines and reversible image.

MONITOR SPECS

Screen size: 5 inch (diagonal)
Signal type: PAL/NTSC (auto-switch)
Resolution: 800 x 480
Inputs: 2 x Video in
Connector type: Female RCA
Power supply: 12v
Reverse trigger: No – auto trigger
Mounting type: 3M tape on base
Sun shield: Yes – Fixed
Speaker: No
Menu features: Brightness, contrast, colour
Dimensions: 120mm (W) x 80mm (H) x 35mm (D)

CAMERA SPECS

Image sensor: CMD
Signal type: PAL/NTSC
Resolution (TVL): 420 TV Lines
Pixel: PAL 704×576, NTSC 712×488
Viewing angle: 170 x 120
Image: Mirrored
Infrared: No
Min Illumination: 0.5 LUX
Ingress protection: IP68
Connector type: Mini din to RCA
Power supply: 12v
Mounting type: Flush/Butterfly
Dimensions: 18.5mm (W) x 18.5mm (H) x 21mm (D)
Grid lines function: Yes
Reverse image function: Yes
Power supply: 12v
Dimensions: 18.5mm (W) x 18.5mm (H) x 21 mm (D)
Grid lines function: Yes
Reverse image Function: Yes
